- Speed Gates and Swing Gates
- Full-Height Turnstiles
- Tripod Turnstiles- (Box & Compact)
- Railing systems
Entrance management systems can be Integrated with RFID card readers, Biometric Devices, QR scanners, and Mobile Credentials, enabling secure Access Control, Real-Time monitoring, and efficient Pedestrian flow Management.

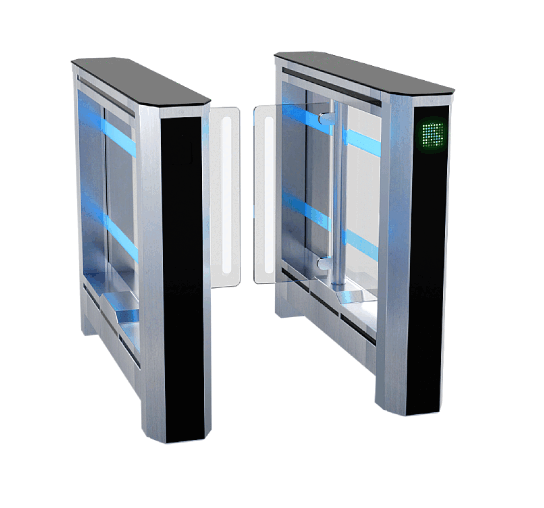

Speed Gates and Swing Gates
The Speed Gate with Swing Panels is a Compact and Intelligent Pedestrian Access Control Solution designed for secure, High-throughput Entry Management. Featuring stainless-steel construction, Tempered Glass Barriers, Advanced Infrared Sensors, and seamless ACS Integration, it delivers reliable Bi-directional Access Control with enhanced safety, Anti-Tailgating Detection, and Modern Architectural Aesthetics.
Key Highlights
- Elegant stainless-steel construction with tempered glass panels
- High throughput up to 60 persons per minute
- Bi-directional access control operation
- Advanced infrared sensor technology for anti-tailgating and enhanced safety
- Seamless integration with any Access Control System (ACS)
- Multiple passage width options: 650 mm, 900 mm & 1000 mm
- Wider lane support for wheelchair and emergency access
- Emergency unlocking through Fire Alarm integration
- LED indication for passage status and operation
Technical Specifications
- Operating Voltage: 24 V DC
- Power Consumption: 160 W
- Current Consumption: 6.5 A
- Operating Temperature: +1 °C to +50 °C
- Protection Rating: IP41
- Mean Time to Failure: 12 Million Cycles
- Reader Operating Distance: Minimum 40 mm

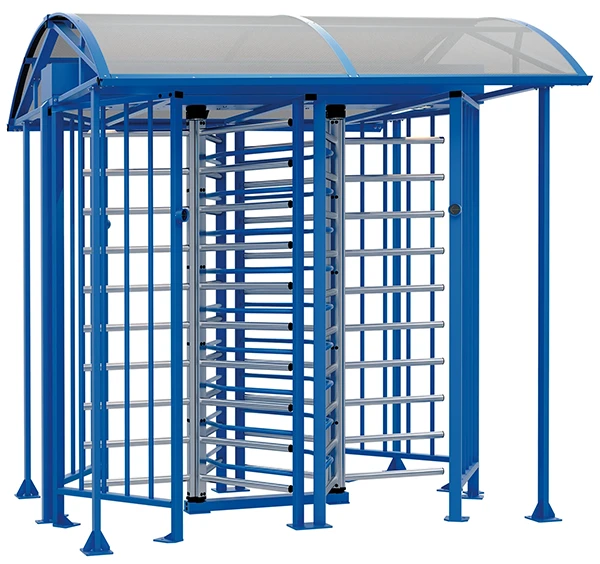

Full height rotor turnstiles and security gates
Full Height Rotor Turnstiles are designed to provide complete pedestrian access control with maximum security for both indoor and outdoor applications. Available in configurations such as Four-Arm Rotor, Double Passage Rotor, and Motorized Full Height Turnstiles, these solutions are ideal for critical infrastructure, industrial facilities, data centers, transportation hubs, and high-security environments.
Key Highlights
- Complete full-height passage protection
- Available in single, double passage, and four-arm configurations
- Indoor and outdoor installation support
- Corrosion-resistant galvanized steel construction
- Stainless-steel rotor sections for enhanced durability
- Smooth and reliable motorized operation
- Integrated anti-reverse rotation mechanism
- Emergency unlocking with Fire Alarm integration
- Support for ACS integration and standalone operation
- Provision for intrusion detector and siren connectivity
- LED passage indication and walkway illumination
- Modular design with canopy, gate, and railing options
- Flexible cable routing for easy multi-lane installation
Technical Specifications
- Operating Voltage: 24 V DC
- Power Consumption: 60 W
- Current Consumption: 1.2 A
- Passage Width: 630 mm
- Throughput: Up to 40 persons/min (controlled mode)
- Protection Rating: IP56
- Operating Temperature: -40 °C to +55 °C
- Mean Time to Failure: 4 Million Passages
TRIOPDS TRONSTILE

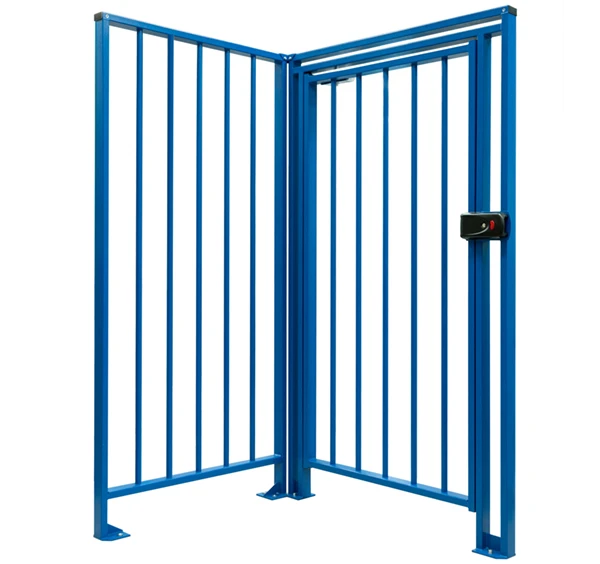

Full height railing
We offer a complete range of pedestrian railings and barrier solutions including Full Height Railings, Waist Height Railings, Tempered Glass Railings, and Retractable Belt Stanchions for organized and secure passage management. Designed for seamless integration with turnstiles and security gates, these railings help create controlled pedestrian pathways in airports, metro stations, industrial facilities, commercial buildings, and other high-security environments.
Manufactured with durable steel, stainless steel, and tempered glass finishes, the railings are suitable for both indoor and outdoor installations and can be configured as standalone barriers or integrated into complete entrance control systems.
Technical Specifications
- Material Options: Powder-coated steel, stainless steel, tempered glass
- Configuration Types: Full Height, Waist Height, Glass Railings, Retractable Belt Stanchions
- Installation: Indoor & Outdoor Applications
- Integration Compatibility: Full Height Turnstiles, Security Gates, Access Control Systems
- Connection Options: Straight (180°) & Corner (90°) Configurations
- Mounting: Floor Mounted / Wall Mounted
- Finish: Corrosion-resistant coated surfaces
